for this purpose. If the domestic power sup-

ply socket is not earthed, connect the appli-

ance to a separate earth in compliance with

current regulations, consulting a qualified

electrician.

The manufacturer declines all responsibility if

the above safety precautions are not ob-

served.

This appliance complies with the E.E.C. Di-

rectives.

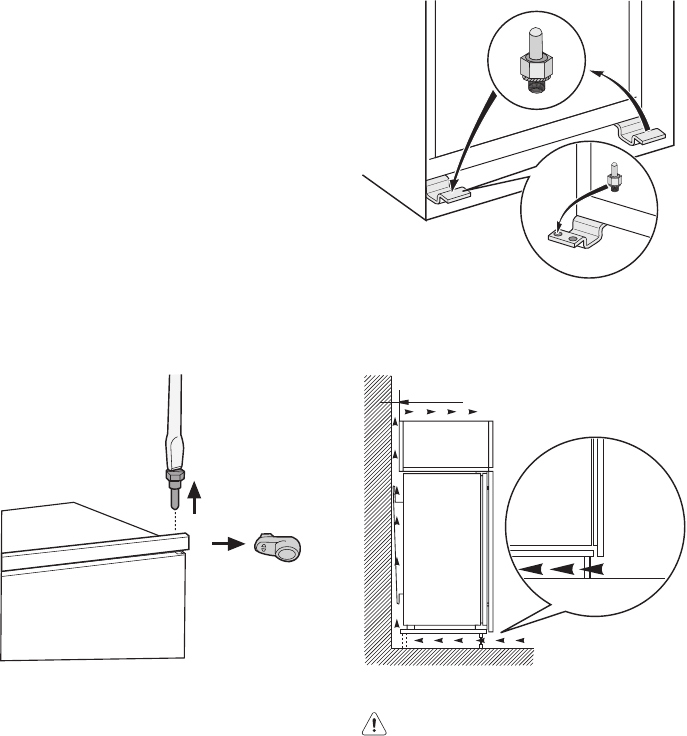

Door reversibility

The door of the appliance opens to the right.

If you want to open the door to the left, follow

these steps before you install the appliance:

1. Loosen and remove the upper pin.

2. Remove the door.

3. Remove the spacer.

4. With a key, loosen the lower pin.

On the opposite side:

1. Tighten the lower pin.

2. Install the spacer.

3. Install the door.

4. Tighten the upper pin.

Ventilation requirements

The airflow behind the appliance must be

sufficient.

min.

200 cm

2

min.

200 cm

2

Installing the appliance

Caution! Make sure that the mains

cable can move freely.

Do the following steps:

1. Apply the adhesive sealing strip to the

appliance as shown in figure.

progress 9
